morris livestock handling systems

Morris Range of Beef Crushes, Dairy Crushes, Clipping Crushes Yokes and Gates. Also specials available to order to suit your needs.




Click on the thumbnail to view a larger image.

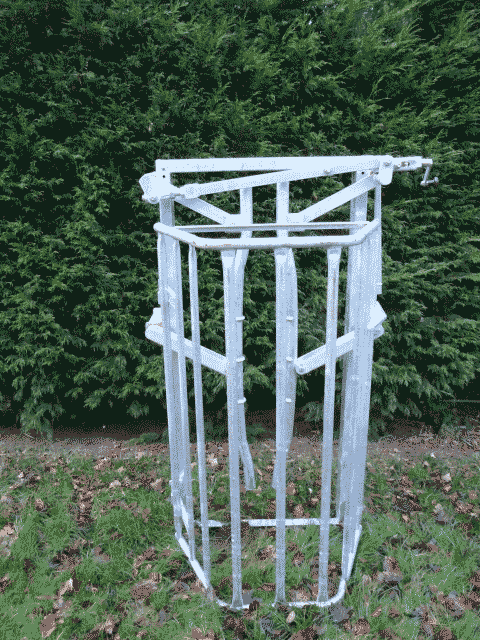

1 Piece Gate

front view

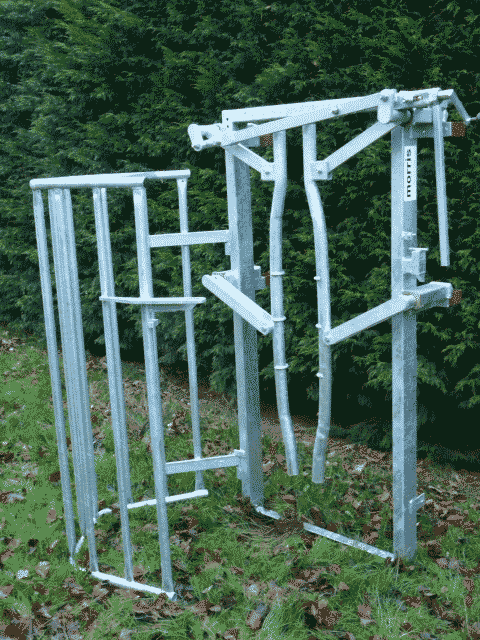

1 Piece Gate

view with gate open

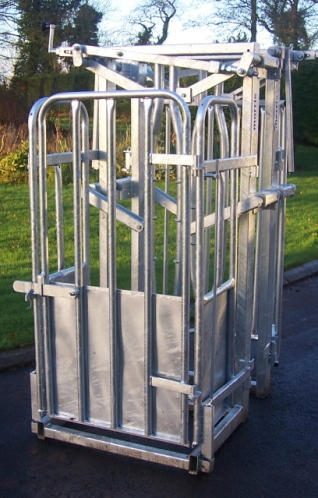

Popular Crushgate

Popular Crushgate with 1 piece wrapround
Fit onto crush race or existing crush

  • Left and right hand yoke lever operation available
  • Left and right hand opening of gate available
  • Standard specification has the gate hinged on the opposite side to the yoke lever operation although this can be ordered on the same side at an additional cost
  • Galvanised
  • Standard width is 28” but wider widths can be ordered
  • Quick manual screw adjustment of yoke width
  • Optional Chain lugs to the yoke to prevent young calves escaping
  • Optional rear yoke lever kit to allow the operator to close the yoke whilst along the race.

Click on the thumbnail to view a larger image.

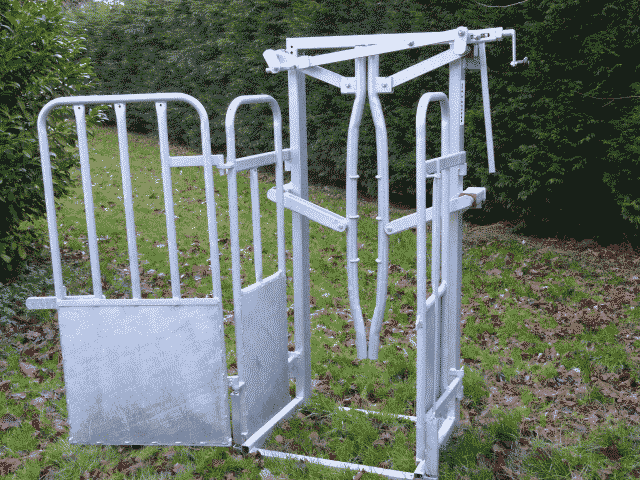

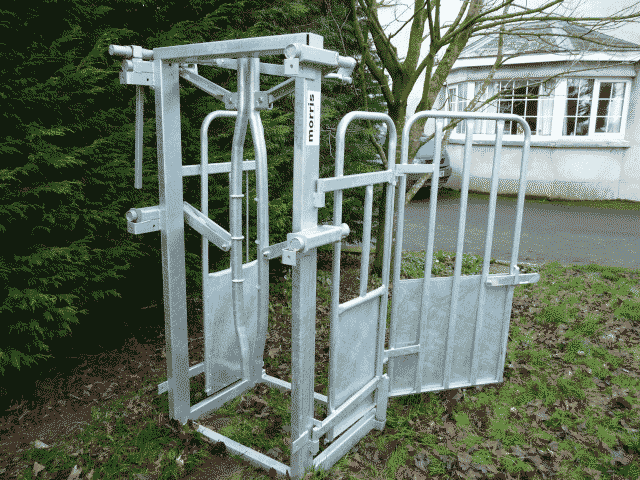

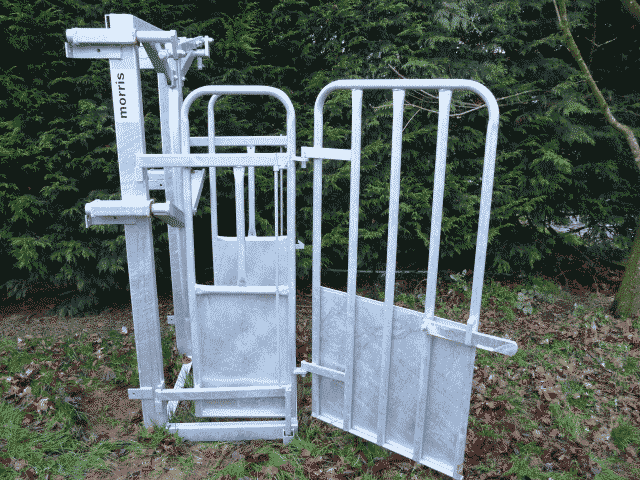

3 Piece Gate
3 Piece Gate
3 Piece Gate
3 Piece Gate

3 Piece Gate


The 3 piece gate has all the features of the Popular crushgate mentioned above but the added benefits of the gate opening in 3 sections if space is limited or if you are opening against a wall.

Click on the thumbnail to view a larger image.


Morham

Rear lift up bar for trimming

Morham
Morham

Morham

With rear gates (optional)

Morham







Special with rump bar

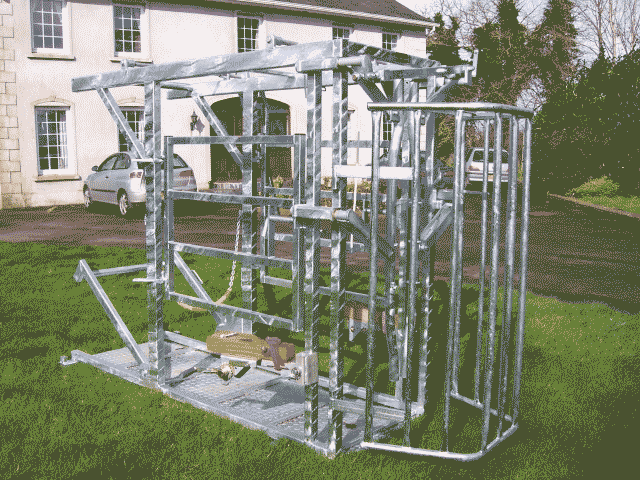

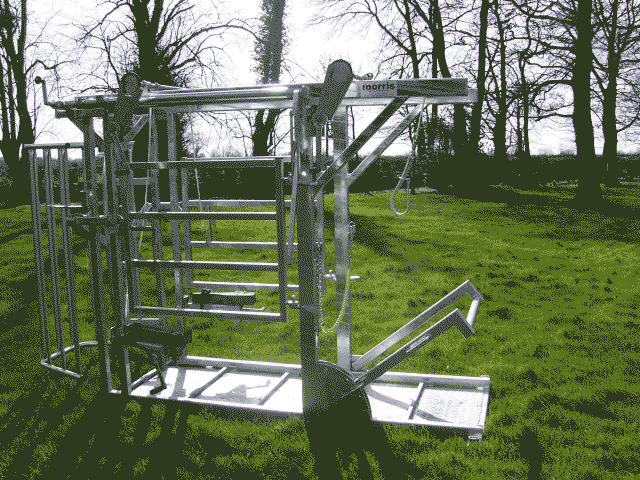

Morham Hoofcare Crush

Morham Hoofcare crush
Designed by George Hamilton and built by Morris

A heavy duty crush, dedicated to hoof care. Designed to keep both the animal and operator safe whilst carrying out necessary husbandry
Standard specification

  • Morris Popular crushgate and yoke
  • Wopa leg and body winch
  • Wopa front leg block
  • Central position of yoke lever – can be left or right side
  • Wide opening side gates
  • Heavy duty steel construction
  • Chequer plate floor with grip bars
  • Galvanised
  • Inside width 690mm Overall length 2750mm
  • Optional features:
  • 3 piece front crush gate in place of Popular crushgate
  • Rear side gates
  • Rear backing gates with or without ratchet rump bar
  • Wopa nodd guiding gates
  • Wopa wider width Belly band
  • Pallet pocket toes

Click on the thumbnail to view a larger image.

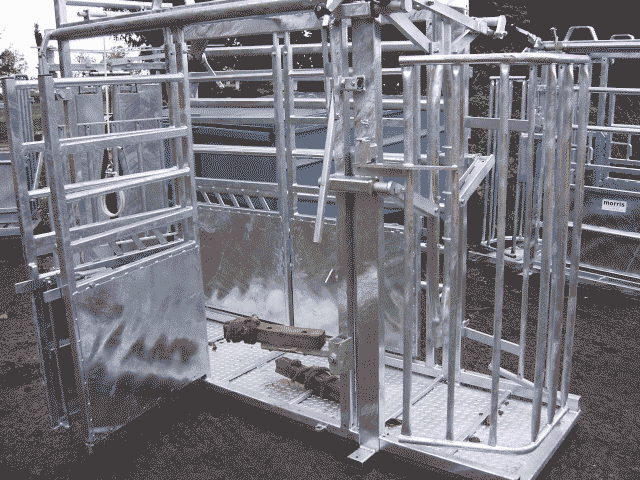

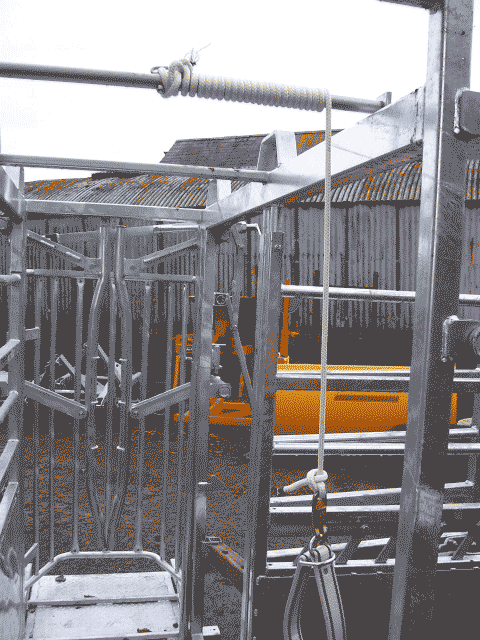

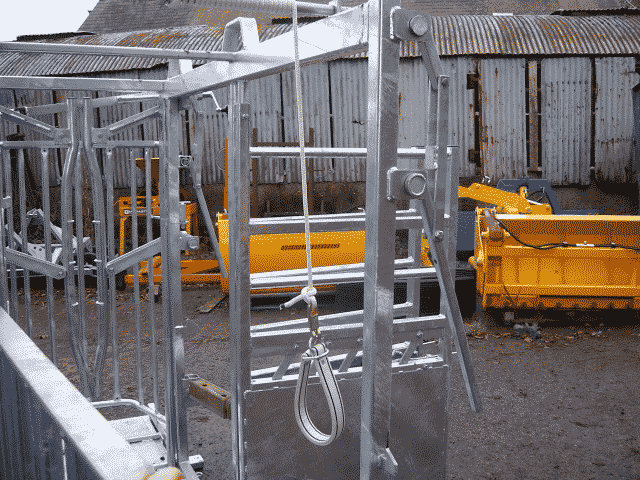

Dairy Crush
Dairy Crush
Dairy Crush
Dairy Crush

The Dairy Crush


This crush is specifically geared towards a dairy herd but still has all the standard benefits of a morris crush. The centre pivoted side doors allow for easier access for foot trimming.
Standard specification

  • Morris 3 piece front crushgate and yoke
  • Rear gate
  • 4 opening side doors, pivoting in the middle of the crush
  • Side access Vet Door
  • Ratchet rump bar
  • Rear yoke lever
  • Heavy duty steel construction
  • Chequer plate floor with grip bars
  • Galvanised
  • Inside width 700mm, overall length 2600mm
  • Pallet toe pockets
  • Optional features:
  • Popular front gate in place of 3 piece crushgate
  • Weigh Platform or weigh bars

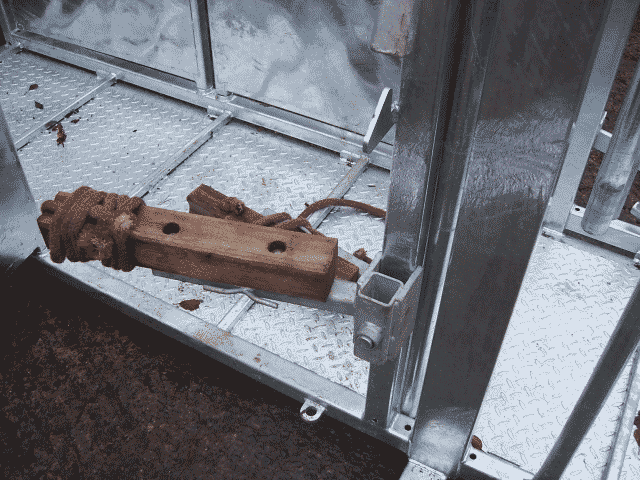

  • Foot trimming kit
  • Longer length rear gate to prevent young calves escaping
  • Calf yoke (as a removable item)
  • Chain lugs to the yoke to prevent young calves escaping
  • Extra wide crushes available to order up to 800mm
  • 3 point linkage

Standard special Crush

Standard Clipping Crush


This crush has 4 large doors which open to give complete access to the side of the beast. The height adjustable safety bar gives three operating positions providing great access for clipping.
Standard specification

  • Morris 3 piece front crushgate and yoke
  • Rear gate
  • 4 opening side doors, pivoting at the ends of the crush
  • Side access Vet Door
  • 2 Height adjustable safety bars
  • Ratchet rump bar
  • Rear yoke lever
  • Heavy duty steel construction
  • Chequer plate floor with grip bars
  • Galvanised
  • Inside width 760mm, overall length 2600mm
  • Pallet toe pockets
  • Optional features:
  • Popular front gate in place of 3 piece crushgate
  • Weigh Platform or weigh bars
  • Foot trimming kit
  • Longer length rear gate to prevent young calves escaping
  • Calf yoke (as a removable item)
  • Chain lugs to the yoke to prevent young calves escaping
  • Extra wide crushes available to order up to 800mm

Standard special Crush

Variable width Clipping Crush


This crush has all the attributes of the Standard clipping crush with the added benefits of variable width sides enabling more control over young stock.
Each side has 3 position options (giving over 5 different widths) and is easily adjusted with a simple pull cord mechanism.
Standard specification

  • Morris 3 piece front crushgate and yoke
  • Rear gate
  • Variable width side panels
  • 4 opening side doors, pivoting at the ends of the crush
  • Side access Vet Door
  • Height adjustable safety bars for clipping
  • Ratchet rump bar
  • Rear yoke lever
  • Heavy duty steel construction
  • Chequer plate floor with grip bars
  • Galvanised
  • Inside width 760mm, overall length 2600mm
  • Pallet toe pockets
  • Optional features:
  • Popular front gate in place of 3 piece crushgate
  • Weigh Platform or weigh bars
  • Foot trimming kit
  • Longer length rear gate to prevent young calves escaping
  • Calf yoke (as a removable item)
  • Chain lugs to the yoke to prevent young calves escaping
  • Extra wide crushes available to order up to 800mm

Click on the thumbnail to view a larger image.
Side view showing rear yoke lever and longer length rear gate

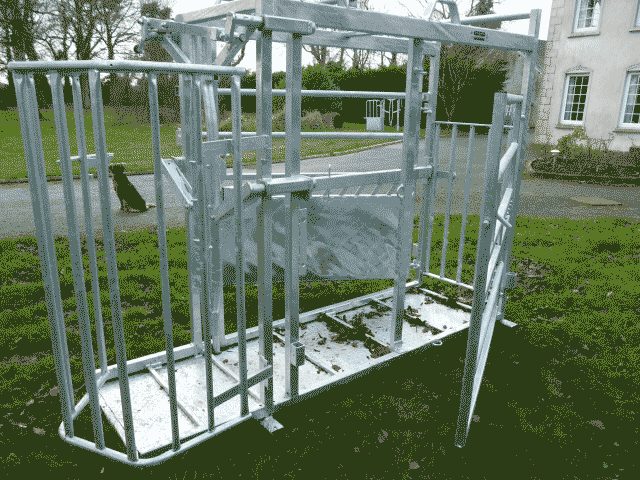

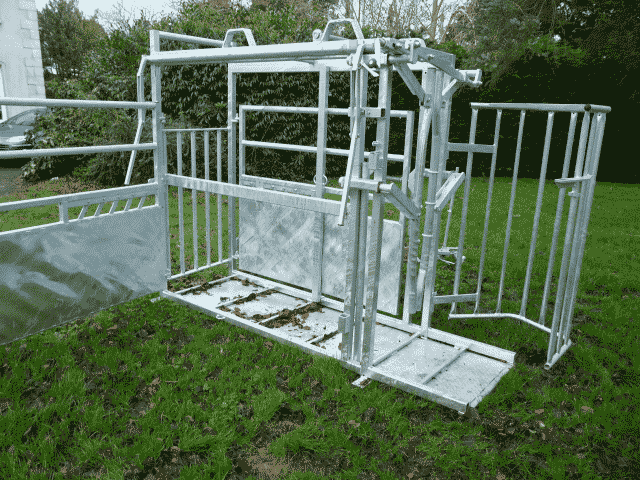

Side view of beef crush with side gates open
Other side view of beef crush with side gates opne

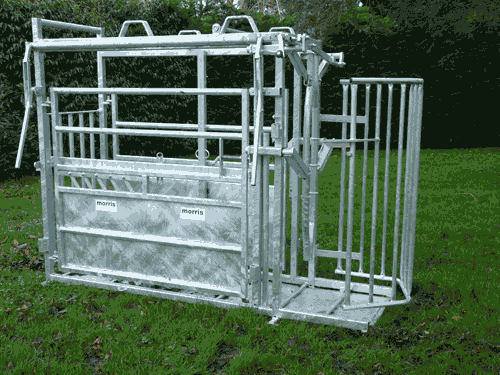

Beef Crush

Popular Beef Crush


A robust, heavy duty crush with good access, rear gate, full length side gates and the morris yoke.
Standard specification

  • Morris Popular crushgate and yoke
  • Rear gate
  • 2 wide opening side doors
  • 1 horizontal height and 1 vertical clipping bars both adjustable
  • interchangeable and removable
  • Ratchet rump bar
  • Rear yoke lever
  • Heavy duty steel construction
  • Chequer plate floor with grip bars
  • Galvanised
  • Inside width 690mm, overall length 2600mm
  • Pallet toe pockets
  • Optional features:
  • 3 piece front crush gate in place of Popular crushgate
  • Weigh Platform or weigh bars
  • Foot trimming kit
  • Longer length rear gate to prevent young calves escaping
  • Calf yoke (as a removable item)
  • Chain lugs to the yoke to prevent young calves escaping
  • Extra wide crushes available to order up to 800mm
  • 3 point linkage frame

Click on the thumbnail to view a larger image.





Standard special Crush

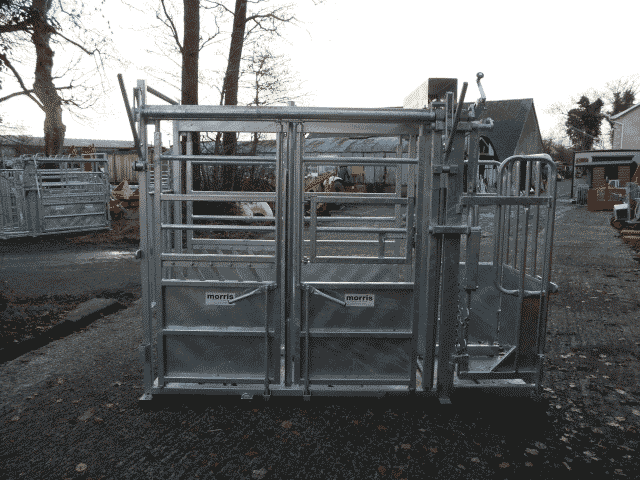

Standard Special Crush

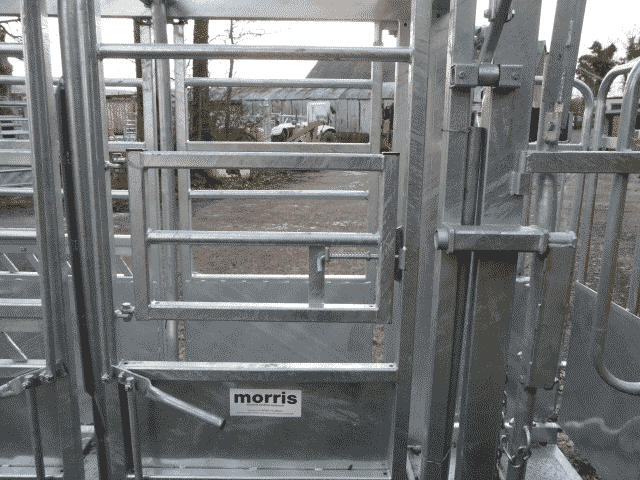

vet door

Optional vet door

Front Gate

Front Gate

Rear Gate

Rear Gate

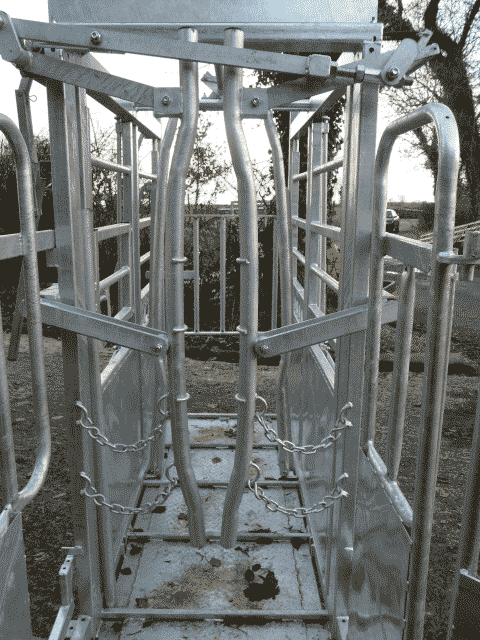

Body Yoke

Body Yoke

Special Crush

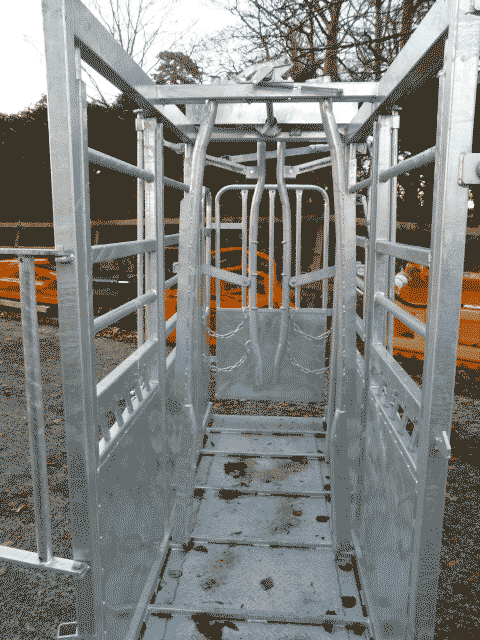

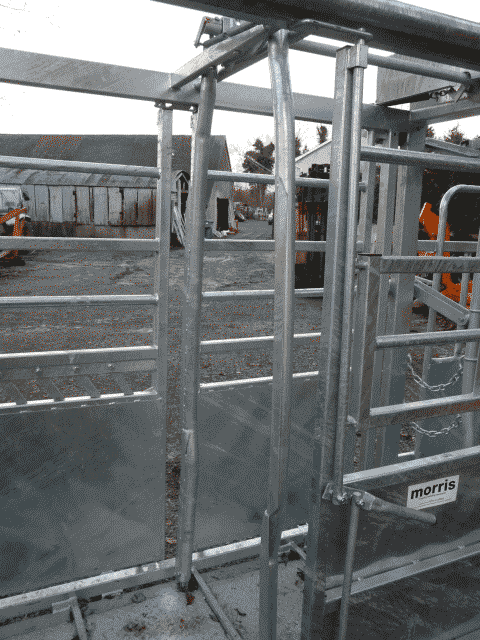

This is a special Morris crush made specifically to customer requirements. It is a version of the Morris Variable width clipper crush with a body yoke placed mid way along the crush to prevent the animal from moving from side to side.

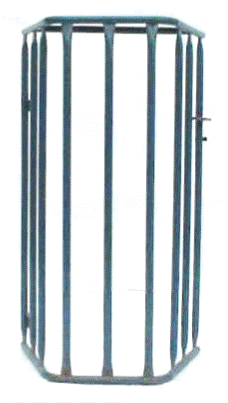

Non Return Gate

Non Return Gate

Comes with either locking / non locking feature
used along a race to prevent animal moving back
Galvanised


Sliding Gate

Sliding Gate by Tepari - Cattlemaster

  • Can attach to back of crush
  • Can be fitted along the crush race to prevent the animals back down the race
  • Can be mounted for right or left hand operation
  • Width of Gate (exc. handle ) 810mm, overall width ( inc. handle ) 1010mm, height 1950mm



pdf Livestock Handling 2009 Brochure (1.26KB)

Left-click to open the file in a new window.
Right-click and choose 'save as...' to save the file to a location on your computer.

Adobe Acrobat Reader (download here) is required to view this file.



Morris reserve the right to change the design and specifications without prior notice
